Double Acting Cylinders
At Burnside Eurocyl Ltd, we offer custom built cylinders to OEMs. Production is to the highest standards using state-of-the-art manufacturing techniques and technology.
A double acting hydraulic cylinder utilises both the full and annular bores and can apply force in both directions. It is available in a wide range of sizes. See the specification list for the size range available. The hydraulic cylinder is also sometimes known as a hydraulic ram.

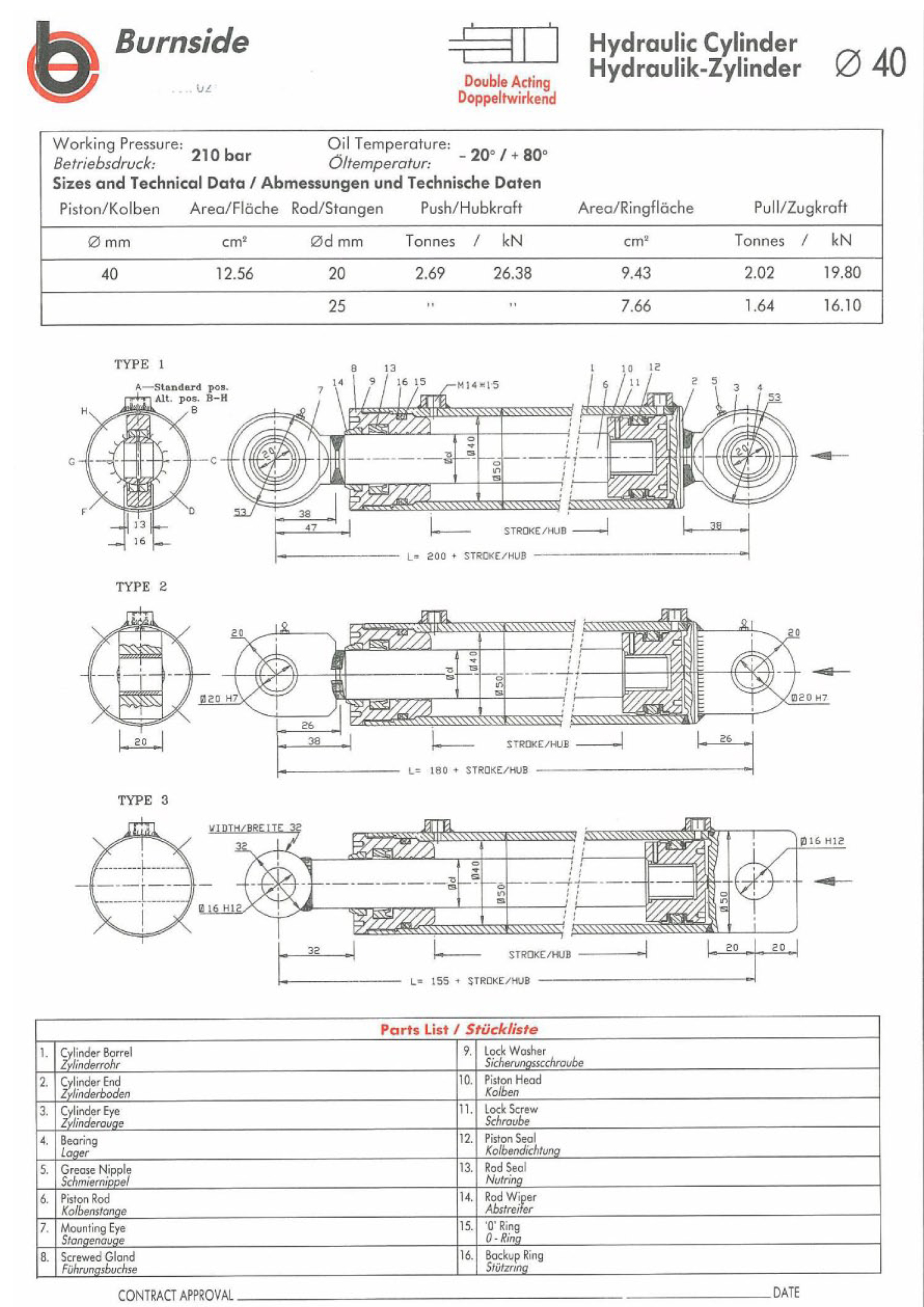

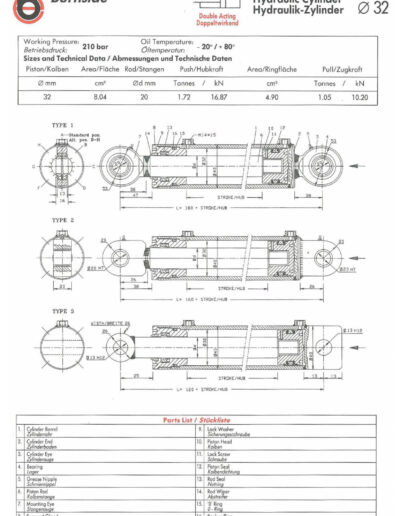

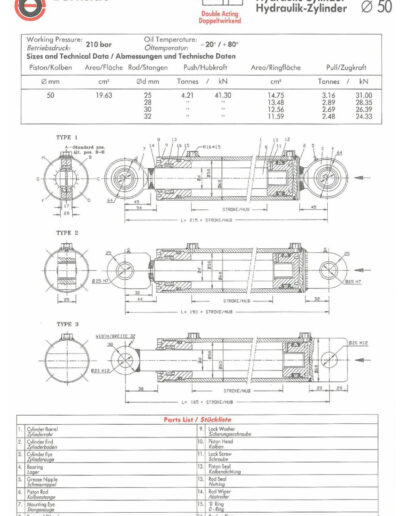

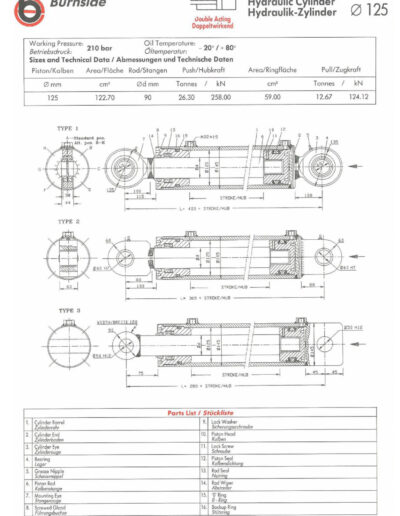

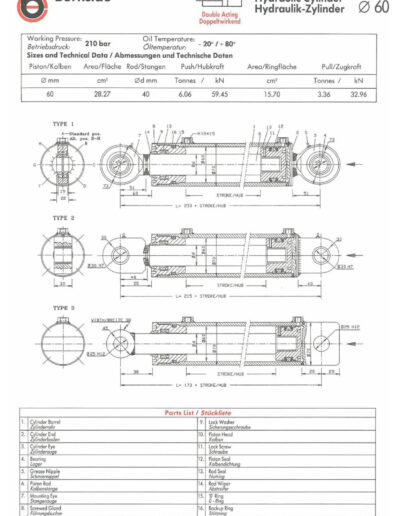

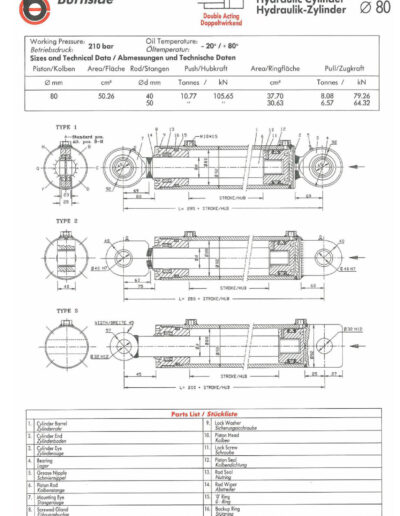

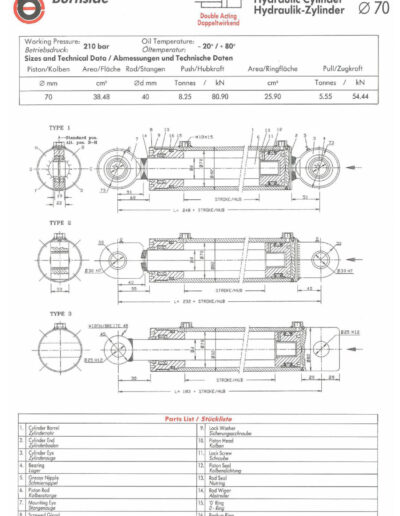

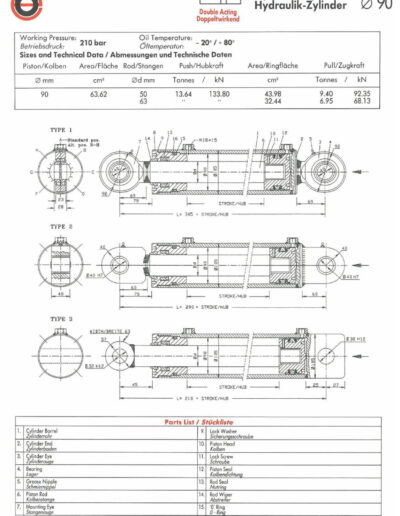

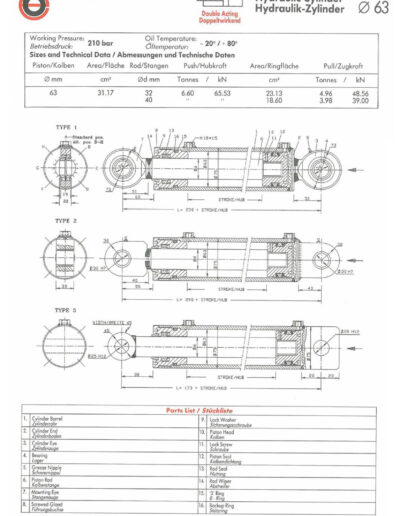

Below, you can review technical details from specifications to technical drawings and photographs.
Specification
Technical Details
Product Info

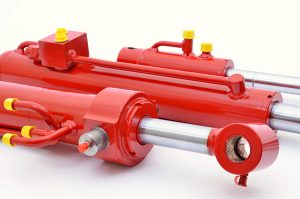

Photos
| Specification | Details |
|---|---|
| Working Pressure | Up to 350 bar |
| Test Pressure | Up to 500 bar |
| Maximum Working Speed | 0.5 m/second |
| Temperature | -30°C to +90°C |
| Fluid | Mineral Hydraulic Oil |
| Piston Sizes | 25/30/40/45/50/55/60/65/70/75/80/85/90/95/100/105/110/115/120/125/130/140/150/160/180/200 |
| Rod Sizes | 12/16/20/22/25/28/30/32/35/36/40/45/50/56/60/63/70/75/80/90/100/120/140 |
| Strokes | Up to 5 meters |
| Chrome Plating | Micro-crack hard chrome 1100HV 72hrs to 1000 NSS R10 ISO 9227 Double chrome Nickel chrome Induction Hardened bar |
| Mounting Types | Plain pin hole Bushed pin hole Spherical bearing U-bracket Threaded end Flange Trunnion |
| Available With | Air bleeding End cushioning Special attachments Integrated control valves fitted Electrical position sensing devices Magnetostrictive Measurement Technology |
| Painting | Phosphate & finish painting RAL colours Customised colours |
