Displacement Cylinders
As industry specialists in construction, automotive and agricultural engineering, we offer only the best quality products. We focus on service and guarantee real value and reliability.A displacement cylinder operates by oil displacing the cylinder rod. With a displacement hydraulic cylinder, the rod pushes on the outward stroke only and the cylinder relies on the load or some other force to return the cylinder to the closed position. These cylinders are also sometimes known as Plunger Cylinders.

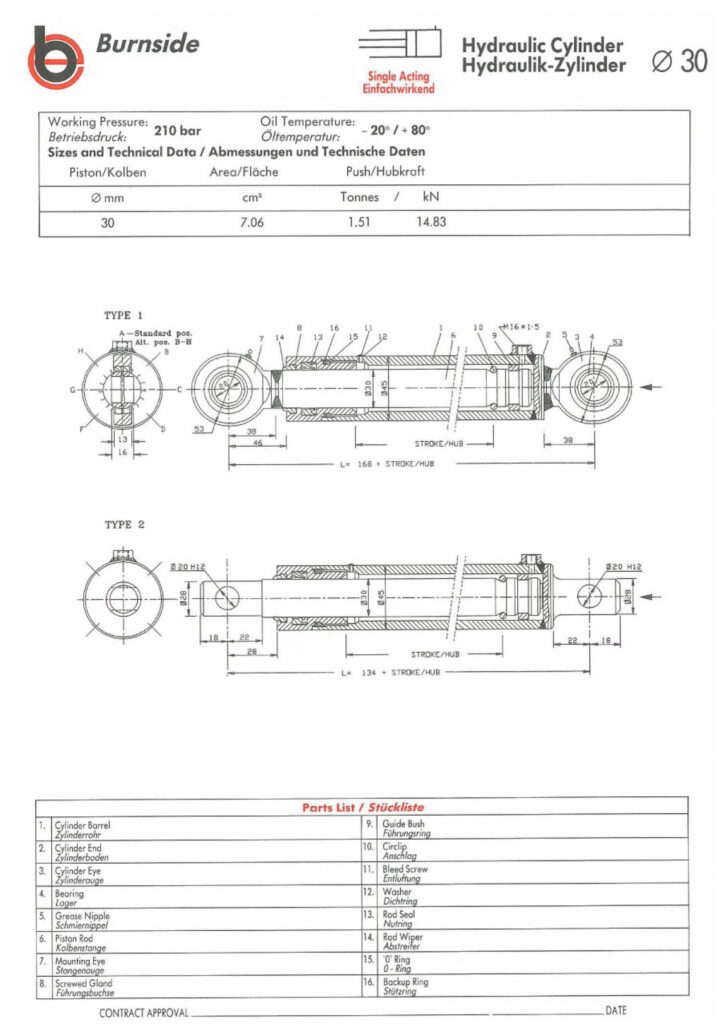

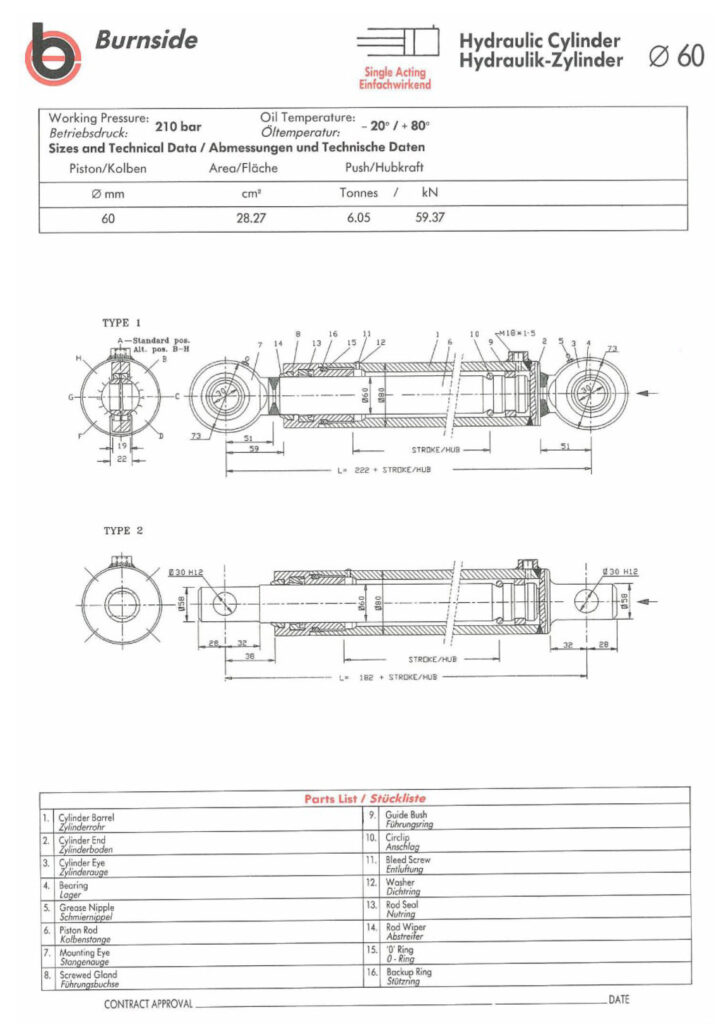

Below, you can review technical details from specifications to technical drawings and photographs.
Specification
Technical Details
Product Info
Photos
| Specification | Details |
|---|---|
| Working Pressure | Up to 320 bar |
| Test Pressure | Up to 320 bar |
| Maximum Working Speed | 0.5 m/second |
| Temperature | -30°C to +90°C |
| Fluid | Mineral Hydraulic Oil |
| Piston Sizes | 25–130, 140, 150, 160, 180, 200 mm |
| Rod Sizes | 12–100, 120, 140 mm |
| Strokes | Up to 5 meters |
| Chrome Plating | Micro-crack hard chrome 1100HV 72hrs to 1000 NSS R10 ISO 9227 Double chrome Nickel chrome Induction hardened bar |
| Mounting Types | Plain pin hole Bushed pin hole Spherical bearing U-bracket Threaded end Flange Trunnion |
| Available With | Air bleeding End cushioning Special attachments Integrated control valves fitted Electrical position sensing devices Magnetostrictive Measurement Technology |
| Painting | Phosphate & finish painting RAL colours Customised colours |
